Product Description
Details:
AUTOMATIC AUGER FILLER WITH SCREW CONVEYOR :
|
Sealing
|
Center seal
|
|
|
Pouch size
|
Pouch width up to 150 mm width roll width 320 mm. Length controlled as per eye mark-no restriction
|
|
|
Range
|
From 200 gms to 1000 gms. With using change parts
|
|
|
Out-put pouches per
|
20 to 30 ppm It also depends upon the kind, quality and thickness of laminate used.
|
|
|
Suitability
|
Any heat sealing films (laminates) or Alum foil based material.
|
|
|
Power Requirement
|
5 KW.( motor,Main motor, Heaters)
|
|
|
Heaters
|
Cartridge type ( 6 nos.) 250W x 6
|
|
|
Sealing
|
Through Pneumatic actuated for Vertical and Horizontal sealing.
|
|
|
Control Part
|
PLC with a 2 line 20 character HMI display. Telemechanique contactors. Selectron indicating type
Temperature controller.
|
|
|
Electrical stability
|
Machine must get 415 V / 50 Hz constant supply, if not you must connect a stabilizer or CVCF.
|
|
|
Registration system
|
Photocell control using optical scanning head sensor.
|
|
|
Paper pulling
|
Roller type.
|
|
|
Horizontal sealing
|
Pneumatic.
|
|
|
Vertical sealing
|
Pneumatic.
|
|
|
Filler type
|
Servo based.
|
|
|
Air requirement
|
750 Ltr / min Capacity @ 6.5 kg dry Air Pressure.
|
|
|
Pneumatics
|
Janatics
|
|
|
Reel Feed system
|
Single Reel film laminate feed.
|
|
|
Roll Diameter
|
Max 12 inches.
|
|
Material of construction:-
|
Contact Part
|
Stainless Steel 304
|
|
Non-contact Steel / MS parts like body
|
Painted & 18 SWG thickness or Electrolyses Nikel plating. Bolts & Nuts of
Stainless Steel. painted
|
|
Electrical Panel
|
SS 304
|
|
Mounting
|
Vibration absorbing self allying pads
|
|
Overall Dimension including Electrical panel & Un-wind
|
5ft( width) X5 ft ( depth) X 8 ft ( height)
|
|

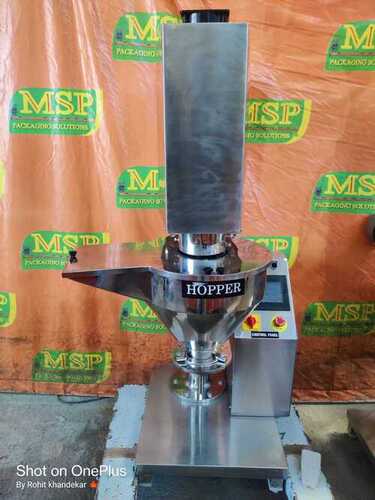

Filling unit
|
AUGER FILLER
|
|
Pouch cutting - Horizontal cutting (along the width of the sachet )
|
Zig Zag cutting blade
|
|
Accuracy
|
+/- 1.0 % Per 100 Consecutive Weights Actual accuracy depend upon type of product
and consistency in it's flow characteristics
|
SCREW CONVEYOR:
Conveying capacity 100 Kg to 1000kg /Hour
Size 4X 3000mm LONG
Hopper Capacity 500 kg approx
Hopper size1000 mm X 600 mm Height ( Conical type).
Drive 1HP Motor,1 :40 Ratio gear drive
Inclination30 to 40 Degree
Castor wheel provided
